Machining, sheet metal and fabrication to drawing (sample)

(555) 017-4400

[email protected]

Parts made to your drawing.

From one prototype to a few thousand a year. Foundry Road Engineering (sample) machines, cuts, folds and welds metal parts for equipment makers, and inspects every batch before it leaves.

Request a quote
See what we make

Quotes within two working days. No minimum order (sample).

Route card, job 24-1187 (sample)

Part

HM-2210 rev C

Description

Manifold block

Material

6082-T6

Quantity

250 off

10

Saw

Cut blanks 82 × 82 × 120 mm

Signed off 13 Oct

20

5-axis mill

Machine all faces and ports

Signed off 14 Oct

30

Drill and tap

Cross-drill galleries, tap M8 × 1.25

Running now

40

Bench

Deburr ports, wash and dry

Queued

50

Inspection

First article on the CMM, then 1 in 25

Queued

60

Outside process

Hard anodise 25 µm

Queued

70

Dispatch

Bag, label, 3.1 material certificate

Queued

Each op is stamped off before the batch moves to the next machine.

What we make

Four work centres under one roof, so a part can be cut, machined, welded and finished without leaving the building.

CNC machining

Three-axis and five-axis milling, CNC turning with live tooling, and cylindrical and surface grinding.

  • Milling envelope1000 × 500 × 500 mm
  • TurningØ 400 × 600 mm
  • Tolerance held± 0.01 mm
Machining details

Sheet metal

Fibre laser cutting, CNC folding and hardware insertion, from 0.5 mm stainless to 20 mm steel plate.

  • Sheet size3000 × 1500 mm
  • Press brake135 t, 3.1 m
  • Steel plateup to 20 mm
Sheet metal details

Welded fabrication

MIG and TIG welding of steel, stainless steel and aluminium frames, guards, brackets and tanks.

  • Largest frame4 × 2 × 2 m
  • ProcessesMIG, TIG
  • Welders6 coded (sample)
Fabrication details

Finishing and assembly

Deburring, bead blasting and washing in house; anodising, plating and powder coat through approved finishers; kitted or built assemblies.

  • In housedeburr, blast, wash
  • Outsideanodise, plate, paint
  • Assemblykits to sub-assemblies
Finishing details

Materials we cut

We buy bar, plate and sheet from approved stockholders and keep the 3.1 material certificate for every batch. Ask about grades not listed.

Aluminium

6082-T6, 7075-T6, 5083

Carbon and alloy steel

S355, EN8, EN24T, 4140

Stainless steel

303, 304, 316L, duplex 2205

Copper alloys

CZ121 brass, phosphor bronze

Engineering plastics

Acetal, PEEK, nylon 6

Grades held in stock or bought to order (sample).

How an order runs

The same steps for a single prototype or a repeat batch: a drawing review before we quote, and a measured first part before the batch.

Route card: your order

You send

Drawing and quantity

You get

Parts, report and certs

10

Drawing review

An engineer reads your drawing and model and asks about anything unclear.

Day 1

20

Quotation

Price per part at your quantities, set-up shown separately, lead time in working days.

Within 2 days

30

Order and planning

Material ordered with certificates, programs written, the job booked on a machine.

Week 1

40

First article

The first part is measured in full; on new parts you get the report before we run the batch.

Week 2

50

Production

The batch runs with in-process checks at the machine.

Weeks 2 to 4

60

Final inspection

Sample inspection to your drawing, paperwork checked against the order.

Before dispatch

70

Dispatch

Packed to protect the finish, sent by our van or your carrier.

On the date agreed

Typical times for a new part in a batch of 50 to 500 (sample).

Industries we supply

Hydraulics and fluid power

Manifold blocks, cylinder end caps, valve bodies and fittings.

Agricultural machinery

Pivot pins, bushes, gearbox housings and welded brackets.

Food and packaging lines

Stainless guards, change parts, frames and hygienic fittings.

Rail and transport

Enclosures, mounting brackets and machined inserts.

Energy and water

Flanges, valve parts and pump components.

Industries and example parts

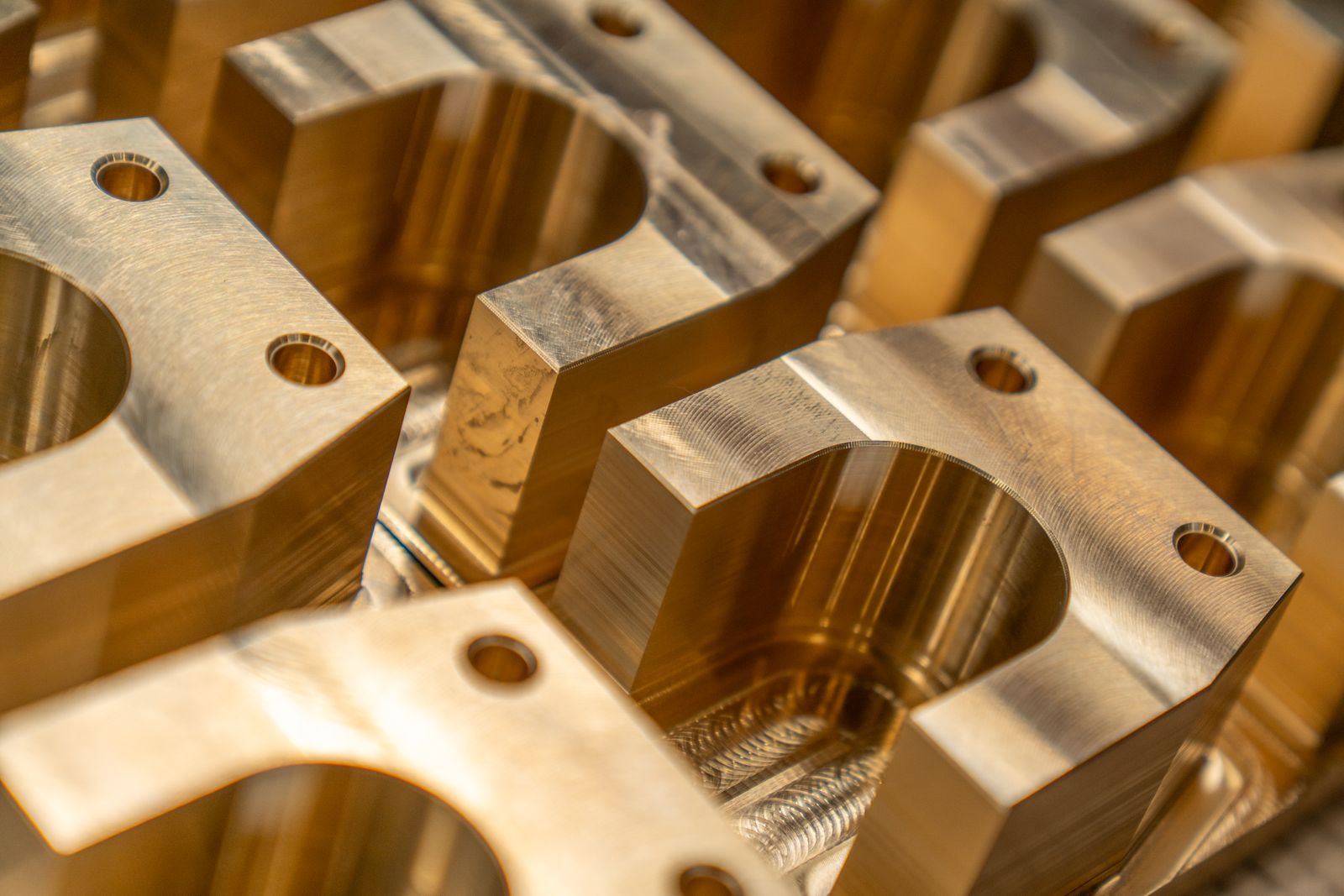

Machined brass components with bored holes, lined up close together

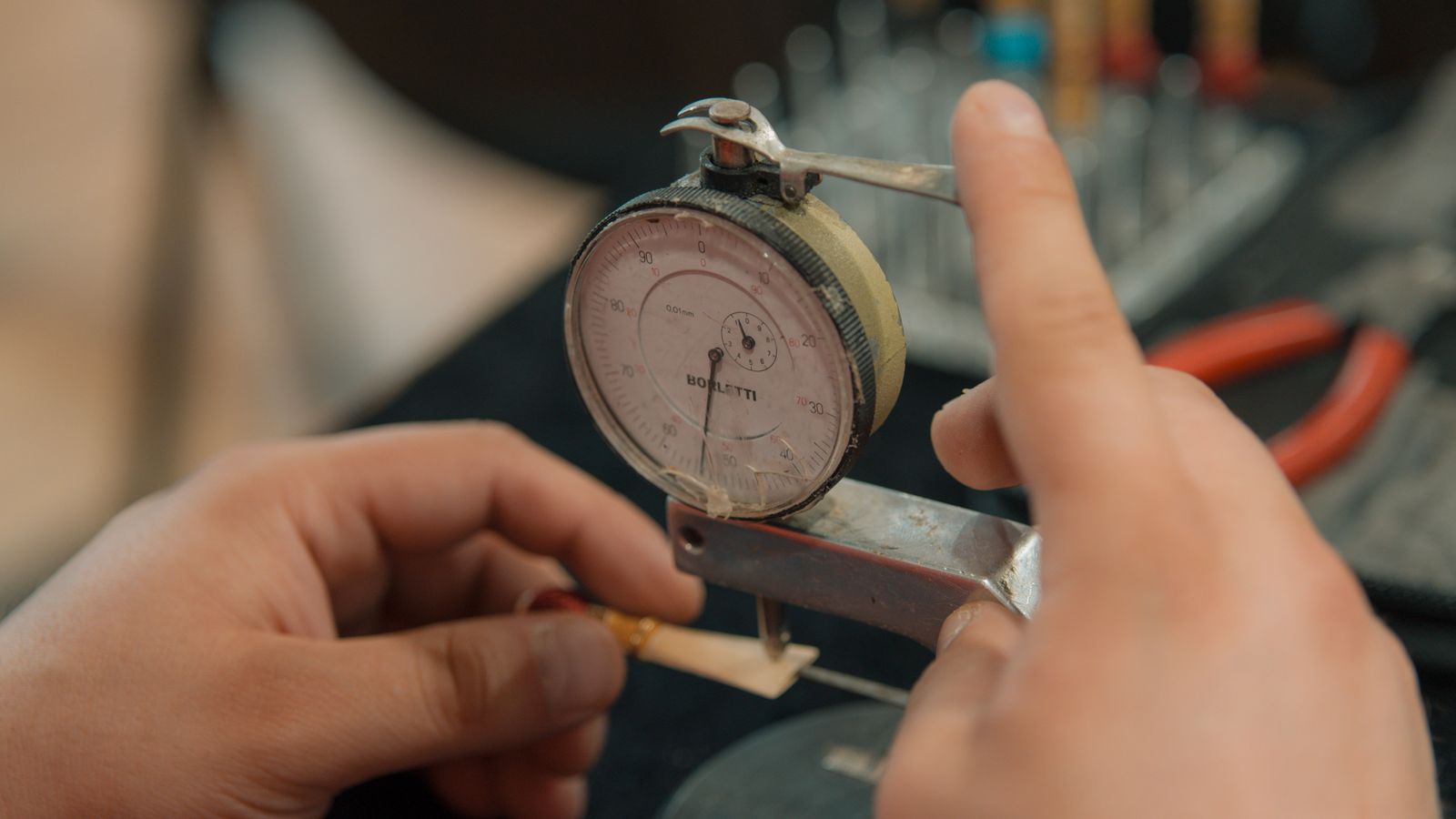

Hands checking a machined part with a dial indicator

Inspection you can read

Every batch is checked against your drawing, and the paperwork travels with the parts.

  • First article inspection report on new parts and new revisions
  • 3.1 material certificates traced to the batch
  • Certificates of conformity, and finish certificates from outside processes
  • Measured on a CMM in a temperature-controlled room
Quality and inspection

Lead times

Times from order to dispatch for parts with an approved first article. We confirm the date on every quote.

Prototype, 1 to 10 off

Working days

5 to 10 days

Small batch, 10 to 500 off

3 to 4 weeks

Repeat order, programs proven

2 weeks

Call-off against a yearly order

We hold finished stock for you

Agreed schedule

Lead times (sample).

No minimum order

We make single parts and spares as well as batches. For one-offs we quote the set-up separately so you can compare.

Urgent parts

Breakdown at your end? Call (555) 017-4400 and ask for the planner; we fit urgent work between batches where we can.

Apprenticeships and jobs

Most of our setters and welders started here as apprentices. Every apprentice works next to an experienced machinist and goes to college one day a week.

Careers at Foundry Road
An experienced machinist showing a trainee a part at the workbench

Engineering notes

All notes

Send a drawing or come and see the shop

Foundry Road Engineering
Unit 4, Foundry Road, Springfield (sample)

Office

Mon to Fri 08:00 to 17:00

Goods in

Mon to Fri 07:30 to 15:30

Our van

Within 40 miles, twice a week

Opening times (sample).
